Profile Projector
Profile Projector RPP-12
For accurate magnification, maximum luminosity, great contrast, uniform resolution to the edge of the screen, freedom from distortion of the images. It is supplied with standard lenses with magnification 25x and 50x for contour projection. The maximum visible part of the object on the screen are 11.2mm and 5.6mm respectively. The screen size is 330mmx380mm (13"x15"). The maximum diameter and length of work accommodated on the stage are 40mm x 150mm respectively. It is having wooden storing cabinet with lock and key for safe custody of lenses etc. The height and weight of the instrument is approximately 1448mm (4'-9") and 68 kg respectively optional available magnification 10x.
Profile Projector RPP-33
Screen:- Antiglare hard glass screen, graduated & rotatable through 360° having least count 1 minute of an arc. Provided with four clips to hold overlay charts and drawings.
Mirrors:- Optically true with surface hard coated to ensure optimum light reflection for best image contrast, long life and edge to edge sharpness on the projection screen.
Contour Illumination:- Contour Illumination is provided with a 24V/150W halogen lamp having a built in condenser system. The illumination can be adjusted through a solid state transformer.
EPI-Illumination:- A Specially designed 12V/100W halogen light ensures uniform surface illumination system for the above. This provides shadow less light on the optical axis for inspection of cavities etc.
Electrical:- Mains input 220-240 volts AC having built in transformers, On-Off Switch, variable intensity controller for both illumination system, indicator and glass fuse.
Accuracy:- Projection accuracy ± 0.1% for contour illumination and ± 0.15% for surface illumination.
Screen Size:- 350mm
Lenses:- 10x Objective (Standard)
Work Stage
Over all Size:- 150mm x 150mm
Cross Movement:- 50mm x 50mm (without measuring units)
Measurement:- By Standard micrometer heads 0-25mm
Least count:- 0.01mm
Standard Accessories:- Supplied complete as above, with standard multilayer coated objective, spare bulb, a vinyl cover and operating instructions manual.
Optional Accessories:- Objectives 20x and 50x, V-Block with clamp, Swivel Center Support Holder, Digital Readout System, Digital Protractor, Work Stage, Calibrated Glass Scales, Standard Overlay Charts etc.
Mirrors:- Optically true with surface hard coated to ensure optimum light reflection for best image contrast, long life and edge to edge sharpness on the projection screen.
Contour Illumination:- Contour Illumination is provided with a 24V/150W halogen lamp having a built in condenser system. The illumination can be adjusted through a solid state transformer.
EPI-Illumination:- A Specially designed 12V/100W halogen light ensures uniform surface illumination system for the above. This provides shadow less light on the optical axis for inspection of cavities etc.
Electrical:- Mains input 220-240 volts AC having built in transformers, On-Off Switch, variable intensity controller for both illumination system, indicator and glass fuse.
Screen Size:- 350mm
Lenses:- 10x Objective (Standard)
Work Stage
Over all Size:- 150mm x 150mm
Cross Movement:- 50mm x 50mm (without measuring units)
Measurement:- By Standard micrometer heads 0-25mm
Least count:- 0.01mm
Standard Accessories:- Supplied complete as above, with standard multilayer coated objective, spare bulb, a vinyl cover and operating instructions manual.
Optional Accessories:- Objectives 20x and 50x, V-Block with clamp, Swivel Center Support Holder, Digital Readout System, Digital Protractor, Work Stage, Calibrated Glass Scales, Standard Overlay Charts etc.
Profile Projector RPP-44
Screen:- Antiglare hard glass screen, graduated & rotatable through 360° having least count 1 minute of an arc. Provided with four clips to hold overlay charts and drawings.
Mirrors:- Optically true with surface hard coated to ensure optimum light reflection for best image contrast, long life and edge to edge sharpness on the projection screen.
Contour Illumination:- Contour Illumination is provided with a 24V/150W halogen lamp having a built in condenser system. The illumination can be adjusted through a solid state transformer.
EPI-Illumination:- A Specially designed 12V/100W halogen light ensures uniform surface illumination system for the above. This provides shadow less light on the optical axis for inspection of cavities etc.
Electrical:- Mains input 220-240 volts AC having built in transformers, On-Off Switch, variable intensity controller for both illumination system, indicator and glass fuse.
Accuracy:- Projection accuracy ± 0.1% for contour illumination and ± 0.15% for surface illumination.
Screen Size:- 400mm
Lenses:- 10x Objective (Standard)
Work Stage
Over all Size:- 300mm x 200mm
Cross Movement:- 150mm x 100mm (without measuring units)
Measurement:- By fine zero adjustment micrometer head 0-50mm.
Least count:- 0.001mm
Standard Accessories:- Supplied complete as above, with standard multilayer coated objective, spare bulb, a vinyl cover and operating instructions manual.
Optional Accessories:- Objectives 20x and 50x, V-Block with clamp, Swivel Center Support Holder, Digital Readout System, Digital Protractor, Work Stage, Calibrated Glass Scales, Standard Overlay Charts etc.
Mirrors:- Optically true with surface hard coated to ensure optimum light reflection for best image contrast, long life and edge to edge sharpness on the projection screen.
Contour Illumination:- Contour Illumination is provided with a 24V/150W halogen lamp having a built in condenser system. The illumination can be adjusted through a solid state transformer.
EPI-Illumination:- A Specially designed 12V/100W halogen light ensures uniform surface illumination system for the above. This provides shadow less light on the optical axis for inspection of cavities etc.
Electrical:- Mains input 220-240 volts AC having built in transformers, On-Off Switch, variable intensity controller for both illumination system, indicator and glass fuse.
Accuracy:- Projection accuracy ± 0.1% for contour illumination and ± 0.15% for surface illumination.
Screen Size:- 400mm
Work Stage
Over all Size:- 300mm x 200mm
Cross Movement:- 150mm x 100mm (without measuring units)
Measurement:- By fine zero adjustment micrometer head 0-50mm.
Least count:- 0.001mm
Standard Accessories:- Supplied complete as above, with standard multilayer coated objective, spare bulb, a vinyl cover and operating instructions manual.
Optional Accessories:- Objectives 20x and 50x, V-Block with clamp, Swivel Center Support Holder, Digital Readout System, Digital Protractor, Work Stage, Calibrated Glass Scales, Standard Overlay Charts etc.
Profile Projector RPP-50
Screen Diameter:- 500mm
Work Stage:- 350 x 200mm
Stage Travel X-Y axis:- 150 x 100mm
Focussing Range:- 125mm
Magnification Standard:- 10x
Magnification Optional:- 20x, 25x, 50x, 100x
Protactor Screen:- 360° Rotation with 2 minutes vernier resolution
Magnification Accuracy:- ± 0.05% on contour and ± 0.1% on surface
Lens Mounting:- 3 turret type for safety and easy use
Resolution:- 0.001mm
Measuring System:- With Mechanical micrometer 0-25mm / DRO / Data Processor (selectable), (optional PC based software)
Illumination:- 24V, 150W Halogen, Forced Air cooled, Light intensity controller
Filter colour:- Green (Yellow - option)
Power Supply:- AC Single Phase 230V, 50Hz
Standard Accessories:- Supplied complete as above, with standard multilayer coated objective, spare bulb, a vinyl cover and operating instructions manual.
Work Stage:- 350 x 200mm
Stage Travel X-Y axis:- 150 x 100mm
Focussing Range:- 125mm
Magnification Standard:- 10x
Protactor Screen:- 360° Rotation with 2 minutes vernier resolution
Magnification Accuracy:- ± 0.05% on contour and ± 0.1% on surface
Lens Mounting:- 3 turret type for safety and easy use
Resolution:- 0.001mm
Measuring System:- With Mechanical micrometer 0-25mm / DRO / Data Processor (selectable), (optional PC based software)
Illumination:- 24V, 150W Halogen, Forced Air cooled, Light intensity controller
Filter colour:- Green (Yellow - option)
Power Supply:- AC Single Phase 230V, 50Hz
Standard Accessories:- Supplied complete as above, with standard multilayer coated objective, spare bulb, a vinyl cover and operating instructions manual.
Profile Projector RPP-60
Screen Diameter:- 600mm.
Work Stage:- 350mm x 200mm.
Stage Travel X-Y Axis:- 200mm x 100mm.
Focussing Range:- 125mm.
Protecor Screen:- 360° Rotation with 2 minutes vernier resolution
Standard Magnification:- 10X
Optional Magnification:- 20X, 25X, 50X & 100X
Magnification Accuracy:- ± 0.05% on contour and ± 0.1% on surface
Lens Mounting:- 3 Turret type for safety and easy use.
Table Top Area:- With T-slot (Helixable for 15o either side).
Resolution:- 0.001mm.
Measuring System:- With Mechanical Micrometer 0-25mm / Digital Read Out/
Data Processor (Selectable), (Optional PC based Software)
Illumination:- 24V, 150W Halogen, Forced Air Cooled, Light Intensity controller for variable backgrounds.
Filter Color:- Green
Power Supply:- AC Single Phase 230V, 50Hz.
Standard Accessories:- Supplied complete as above, with standard multilayer coated objective, spare bulb,a vinyl cover and operating instructions manual.
Work Stage:- 350mm x 200mm.
Focussing Range:- 125mm.
Protecor Screen:- 360° Rotation with 2 minutes vernier resolution
Standard Magnification:- 10X
Optional Magnification:- 20X, 25X, 50X & 100X
Magnification Accuracy:- ± 0.05% on contour and ± 0.1% on surface
Lens Mounting:- 3 Turret type for safety and easy use.
Table Top Area:- With T-slot (Helixable for 15o either side).
Resolution:- 0.001mm.
Measuring System:- With Mechanical Micrometer 0-25mm / Digital Read Out/
Data Processor (Selectable), (Optional PC based Software)
Illumination:- 24V, 150W Halogen, Forced Air Cooled, Light Intensity controller for variable backgrounds.
Filter Color:- Green
Power Supply:- AC Single Phase 230V, 50Hz.
Standard Accessories:- Supplied complete as above, with standard multilayer coated objective, spare bulb,a vinyl cover and operating instructions manual.

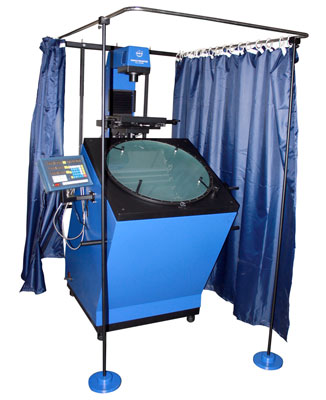

Profile Projector RPP-66DR
Specifications are same as per Model RPP-60 but supply with canopy as per shown in image
Profile Projector RPP-60DPSW
RADICAL Profile Projector Model RPP- 60DPSW designed to facilitate High Contrast Contour and Surface Measurements of relatively large objects ensuring high accuracy in dimensional measurements, surface inspection to meet the critical demands of industries. The versatility of these models lie in sharp, crisp, brilliant and well defined magnified images suitable for edge to edge inspection and measurements. The Projectors are having an inclined, unobstructed screen in front, allowing close examination and comfortable viewing position. The cross travel stage with large working area offers high precision in straightness for each axis movement and in squareness for cross travel. The stage moves smoothly on the linear bearings.
Applications
- Quality Control & Inspection
- Tool and Die Making
- Measurement and Metrology
- Reverse Engineering
- Research and Development
- Manufacturing Assembly
- Educational and Training Purposes
- Quality Control & Inspection
- Tool and Die Making
- Measurement and Metrology
- Reverse Engineering
- Research and Development
- Manufacturing Assembly
- Educational and Training Purposes
- FEATURES
- SPECIFICATION
- DATA PROCESSOR
- MEASURING SOFTWARE
| Screen | Antiglare fine ground screen of dia 600mm having 90° solid cross lines. Screen is rotatable through 360° having least count 1 minute of an arc. provided with four clips to hold overlay charts and drawings |
| Mirror | Optically true with surface hard coated to ensure optimum light reflection for best image contrast, long life and edge to edge sharpness on the projection screen. |
| Work Stage | Precision thread-less aluminum stage of size 350x250mm having X-Y movement range of 250x150mm with built-in linear scales of least count 0.001mm. The circular graduated scale is divided into 360° in steps of one degree with vernier reading to 1 minute. Life long smooth movement is assured by the incorporation of hard steel balls both in longitudinal and transverse slides. |
| Rotary Stage | Rotary Stage of Diameter 100mm or 200mm |
| Lens | Projection Lens 10x Standard. 5x, 20x & 50x are available optionally with suitable condensers. |
| Turret | 3 Position Turret to Mount 3 Lenses |
| Contour illumination | Contour illumination is provided with a 24V/150W halogen lamp having a Illumination built in condenser system. The illumination can be adjusted through a solid state transformer. |
| Accuracy | Projection accuracy 0.1% for contour illumination and 0.1% for surface illumination. |
| Electrical | Mains input 220-240 volts AC having built in transformers, On-Off Switch, variable intensity controller for both illumination system, indicator and glass fuse. |
| Screen Diameter | 600mm |
| Optical System | Vertical Optical Axis |
| Projection Lens | 10x Std. 5x, 20x & 50x are available optionally with suitable condenser |
| Lens Mount | 3 Position Lens Mounting Turret |
| Field of View | 60mm Standard |
| Magnification Accuracy | 0.1% Contour, 0.1% Surface |
| Table Type & Size | Aluminum Hard Coated Threadless Stage 350x250mm |
| Rectangular Glass Size | 300x200mm |
| X-Y Movement | 250x150mm |
| Stage Movement Type | Manual |
| Focusing Type | Manual |
| Measuring Unit | Data Processor having built-in Linear Scales, 3 axis with Geometric Measurements Function |
| Resolution | 0.001mm/0.00005" |
| Digital Protector | 0.01°/1sec, Selectable |
| Digital X-Y Counter | Yes, Resolution 0.001mm |
| Digital Angle Measurement | Yes, 1 second |
| Measurement Software | PC Connected Software & Hardware |
| Rotary Measuring Stage | Available in Dia of 100mm or 200mm, as per requirement |
| Max. Workpiece Height | 110mm |
| Illumination | Contour illumination is by 24V 150Watt halogen bulb built-in the base. |
| Canopy/Cover | Suitable Canopy supplied with Profile Projector to block ambient light from the surrounding environment. This ensures that only the light from the instrument's internal illumination system reaches the screen, which is critical for several reasons. |
| Power Supply | Single Phase AC220-230V+10%V, 50Hz + 3%Hz |
| OPTIONAL ACCESSORIES | V-Block with clamp, Swivel Center Support Holder, Profile Measuring Software, Customized Work Stage, Calibrated Glass Scales & Overlay Charts (Angle, Radius, Matric Threads, Biritch Threads, Graph etc). |

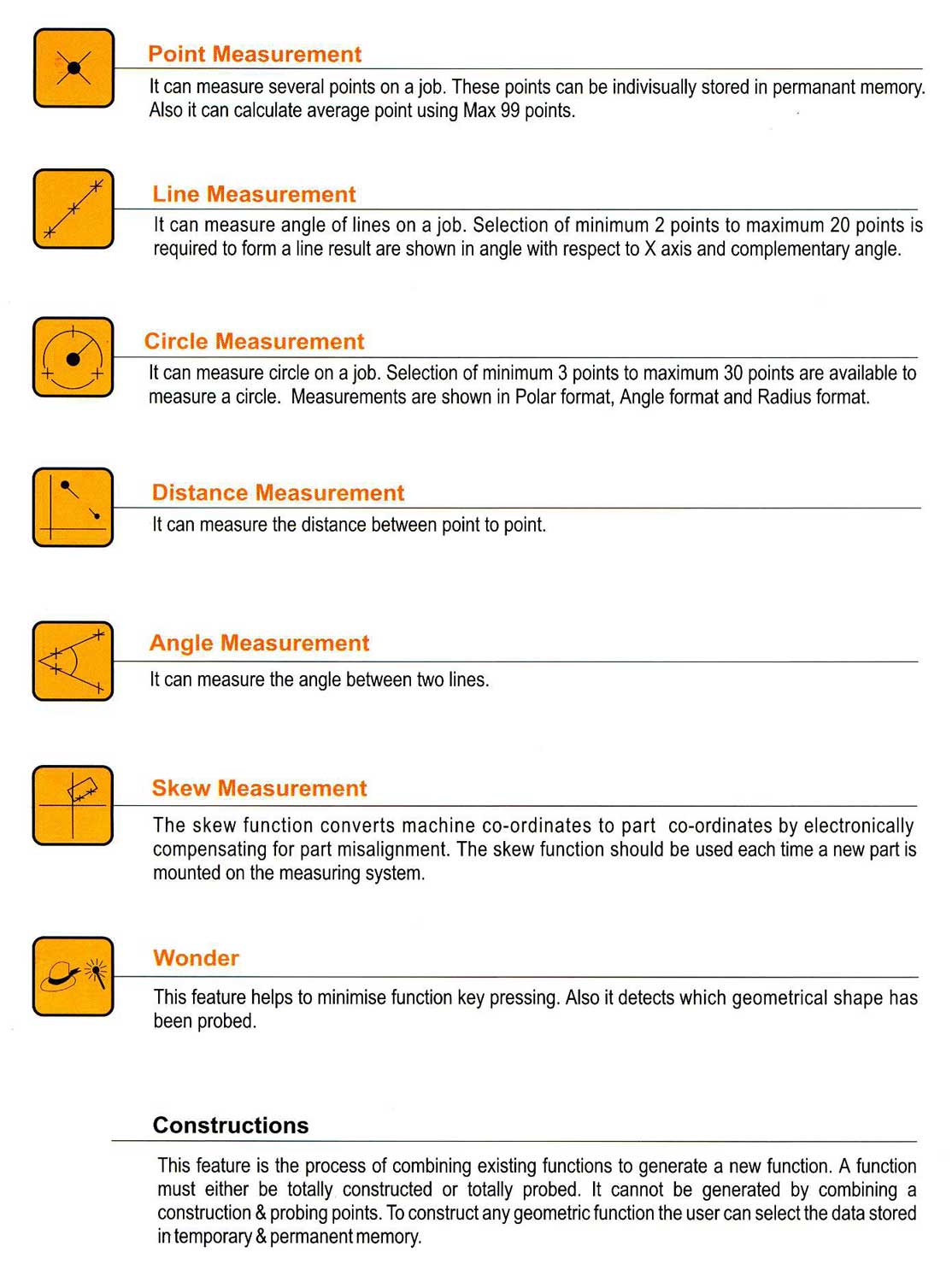

DATA PROCESSOR FOR PROFILE PROJECTORS
Data Processor with printer Interface, PC Serial communication, selectable counting direction, linear error compensation, Incremental & absolute mode, forward/backward annotation, mm/inch conversion, polar/cartesian coordinates, programming, cross calibration & teach mode. Beside above following features are also available :-

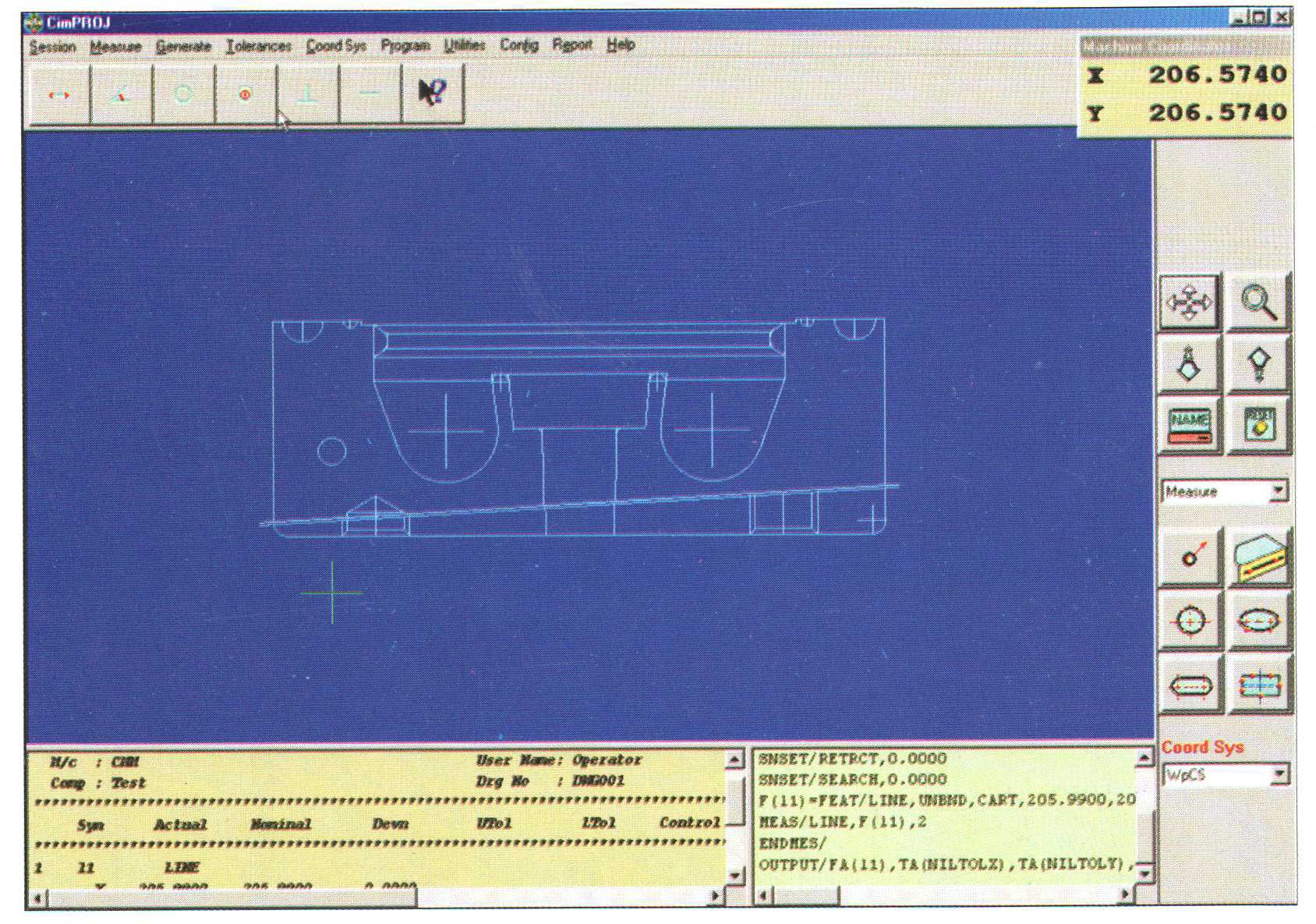

MEASURING SOFTWARE for PROFILE PROJECTORS
Profile Measuring Software is a comprehensive PC-based retrofit package for Profile Projectors. It can be integrated
with all kinds of Profile Projectors - Manual, Semi-automated and Automated (DCC). This consists of PC-based
graphical measurement software and standalone hardware for interfacing linear scales, optical edge-sensors, joystick
and drives (as per requirement).
In addition to standard measurement features, it provides several advanced features such as :-
- Automated Measurement
- Graphical Display of Measured Entities
- Direct Input of Nominal Values from AutoCAD (DXF) Files
- Reverse Engineering
- Teach & Playback
- Flexible Reporting
- Storage of Measurement Data in XML format
- Hand-held Terminal to Operate the Software from near the machine
MEASUREMENT FEATURES
Provides all the typical features required for measurement of components. This includes measurement of geometric
features, constructions, calculations, alignments etc.
GEOMETRIC ENTITIES & CONSTRUCTION
This Software can measure geometric entities from probed points & allows previously measured features to be used
in geometric constructions.
These help in indirect measurement of features that cannot be directly measured.
- Point - Line - Circle - Ellipse - Rounded Slot - Rectangular Slot
Calculations, component alignment, tolerances, display of entity details, element stack, online reports, measurement
data storage, graphical display of entities, automated measurements & customized report formats are some of the
very powerful features of this software.
Profile Projector RPP-150
A dual purpose instrument having halogen projection bulb 12Volt/100Watt or 10watt LED Lamp workable on 220Volt AC. Equipped with an efficient cooling fan inside, 150mm diameter built-in fine grain glass screen. Cross Travel Stage size 125x125 mm.
Table Travel upto 25 mm, Micro-Head Standard 0-25mm, least count 0.01 mm. Rotary Measuring Stage Glass 62mm. Vertical focussing by rack and pinion. The light source with halogen lamp LED offers increased contrast, extended life span and improved edge resolution.
Lamp is cooled by a silent cooling fan. Light intensity control system allows different intensities as per requirement. Supplied complete with Vinyl cover in card board box.
Table Travel upto 25 mm, Micro-Head Standard 0-25mm, least count 0.01 mm. Rotary Measuring Stage Glass 62mm. Vertical focussing by rack and pinion. The light source with halogen lamp LED offers increased contrast, extended life span and improved edge resolution.
Lamp is cooled by a silent cooling fan. Light intensity control system allows different intensities as per requirement. Supplied complete with Vinyl cover in card board box.
Profile Projector RPP-250
Compact light weight Table Top with easy operations. 250mm diameter screen with 90° cross line and chart holders. Screen is graduated to 360° with vernier reading 6 minutes. Projection Light Source with 24V / 150W Halogen Lamp. Double Oblique Light Source for Surface Illumination.
Two adjustable dichroic reflector lamps 12V / 100W each. Focussing can be adjusted manually by hand knob. High Quality objective lenses. Optical distortion below 0.15%. Standard magnifications : 10x, Optional : 20x and 50x. Cross Travel Stage size 125x125 mm. Table Travel upto 35x35 mm (with the use of Gauge Blocks) Micro-Head Standard 0-25mm, least count 0.01 mm.
MODEL NO. & SPECIFICATIONS
Two adjustable dichroic reflector lamps 12V / 100W each. Focussing can be adjusted manually by hand knob. High Quality objective lenses. Optical distortion below 0.15%. Standard magnifications : 10x, Optional : 20x and 50x. Cross Travel Stage size 125x125 mm. Table Travel upto 35x35 mm (with the use of Gauge Blocks) Micro-Head Standard 0-25mm, least count 0.01 mm.
PROJECTION CAPACITY
| Contour Illumination | Surface Illumination | |||||
| Magnification | 10x | 20x | 50x | 10x | 20x | 50x |
| View Field Diameter | 25 | 12.5 | 5 | 25 | 12.5 | 5 |
| Working Distance | 60 | 28 | 12 | 60 | 28 | 12 |
MODEL NO. & SPECIFICATIONS
| Model No. | RPP-250 | RPP-250DM |
| X-Y Range | 35x35mm* | 35x35mm* |
| Effective Table Area |
110x110mm | 110x110mm |
| Measuring Unit | Micrometer Heads 0-25mm | Digital Micrometer Heads0-25mm |
| Resolution | 0.01mm | 0.01mm |
| X-Y Counter | No | No |
| Digital Angle Counter |
No | No |
| Optical Edge Detector |
No | No |
| Rotary Measuring Stage | 360º grad. with vernier 6 min. | 360º grad. with vernier 6 min. |
| Stage Glass | Diameter 62mm | Diameter 62mm |
| Table Type & Size | Al. 125x125mm | Al. 125x125mm |
| Max. Workpiece Height |
100mm | 100mm |
| RPP-Software | No | No |
| Dimensions/ Weight | 55x35x86cm/40Kgs | 55x35x86cm/40Kgs |
Charpy Projector RPP-250C
Charpy Impact Specimen U/V Notch Test
Charpy Profile Projector RPP-250C is designed as per requirement for impact sample gap, metal charpy impact test method. The instrument confirm to the test in U-Type and V-Type as per processing quality of impact specimen. The comparison is directly visible on the 250mm optical glass screen at 50 times magnifications. These are strictly designed according to the ASTM E 23, IS 1499 - 1977, IS 1757 - 1988 standards.
The instrument magnifies the impact specimen gap's outline & projects it on to screen for comparing with standards. This helps to check whether the tested specimen gap is within tolerance or not as per International Standards. The comparison is directly visible & operation is very simple with high accuracy.
Its multilayer coated projection lens provide high transmission with optimum contrast on fine ground glass screen, rotatable through 360° with vernier reading to six minute of an arc. The screen has cross and detachable clips to hold drawings/comparator charts.
A precision micrometer measuring system with Rotary stage is mounted on the table. Circular graduated scale is divided into 360° in steps of 1° with vernier reading to 6 minutes. Lifelong smooth movement is ensured with the incorporation of hard steel balls both in longitudinal and transverse slides.
Charpy Profile Projector RPP-250C is designed as per requirement for impact sample gap, metal charpy impact test method. The instrument confirm to the test in U-Type and V-Type as per processing quality of impact specimen. The comparison is directly visible on the 250mm optical glass screen at 50 times magnifications. These are strictly designed according to the ASTM E 23, IS 1499 - 1977, IS 1757 - 1988 standards.
The instrument magnifies the impact specimen gap's outline & projects it on to screen for comparing with standards. This helps to check whether the tested specimen gap is within tolerance or not as per International Standards. The comparison is directly visible & operation is very simple with high accuracy.
Its multilayer coated projection lens provide high transmission with optimum contrast on fine ground glass screen, rotatable through 360° with vernier reading to six minute of an arc. The screen has cross and detachable clips to hold drawings/comparator charts.
A precision micrometer measuring system with Rotary stage is mounted on the table. Circular graduated scale is divided into 360° in steps of 1° with vernier reading to 6 minutes. Lifelong smooth movement is ensured with the incorporation of hard steel balls both in longitudinal and transverse slides.
TECHNICAL SPECIFICATIONS
| Magnification | 50X (Standard) |
| Projection Screen | 250 mm. optical glass screen |
| Field of View | 5 mm in 50x magnification |
| X-Y-Z Displacement | 40 x 40 x 40 mm. table travel |
| Specimen Platform | Size 160 x 300 mm (Interchangeable) |
| Cross Travel Stage | X-Y Table size 125 x 125 mm Travel upto 40x40 mm Micro-Head Standard 0-25mm L.C.0.01mm Rotary stage glass diameter 62 mm. |
| Illumination | Contour illuminator 24V/150W (Halogen) : A Green filter incorporated into the optical system, to reduce eye strain, improve contrast & eliminate any trace of residual chromatic aberration. The light source with halogen lamp offers increased contrast, extended life span and improved edge resolution. The lamp is cooled by turbine type silent fan. |
| Dimensions/Weight | Nett 55x35x86 cm / 38 Kgs. Gross 74x46x 94 cm / 80 kgs. |
| Optional Accessories | Digital Micrometers 0-25mm LC 0.001 mm., spare halogen bulbs, Objectives lenses 10x and 20x magnifications. |
Profile Projector RPP-3000
Profile Projector Model RPP-3000 series is suitable for all types of measurements and inspections in different industries. Inverted image is projected on the screen. The equipment ensures high accuracy in dimensional measurements and surface inspections.
300mm dia screen is made of fine ground glass and has cross hair 90° solid lines, rotatable through 360° with vernier reading to one minute of an arc and having detachable four clips to hold comparator charts. The precision Micrometer Measuring stage with Rotary measuring stage is mounted on the table. The circular graduated angle is divided into 360° screen rotation. The counter displays upto +370° range, ABS/INC mode switching, Zero Set. Angle reading : Built-in Digital counter (LED), Resolution : 1’ or 0.01° switchable. Life long smooth movement is assured by the incorporation of hard steel balls both in longitudinal and transverse slides.
XY Stage with linear scale measuring Range 100mm x 100mm. Display : Built-in X / Y LED Display. Resolution for X / Y counter : 0.001 mm. X / Y movement should be manual. Workpiece height : 115mm with 10x lens. Working distance 65mm and 20mm when using surface illumination.
High resolution objective lenses are bayonet mounted and specially designed for profile projection. Optical system is telecentric & having vertical illumination with adjustable condenser lens. The basic instrument is supplied with 10x a multi-element coated projection lens. Optional lenses 20X, 50X and 100X (Additional Attachment) are also available as per requirement. Magnification accuracy +0.1% or less in case of contour illumination and +0.15% or less in case of surface illumination is maintained.
Measurement units are available in standard micrometers, digital micrometers, digital readout & data processor as per customer's requirement. DR & DP are having built-in X / Y LED display.
Contour illumination light source is through 24V-150W Halogen bulb with telecentric system & sharp twin condenser. Half reflecting mirror for surface illumination, light source is through 24V-150 Watt Halogen Lamp with 2 step high/low switch is provided for brightness. Heat absorbing filter & cooling fan is also incorporated. Built in noiseless and vibration free blower for powerful cooling fan system. Heat absorbing filter also fitted for optimum cooling. Wide choice of available accessories enhance the scope of applications in various fields.
300mm dia screen is made of fine ground glass and has cross hair 90° solid lines, rotatable through 360° with vernier reading to one minute of an arc and having detachable four clips to hold comparator charts. The precision Micrometer Measuring stage with Rotary measuring stage is mounted on the table. The circular graduated angle is divided into 360° screen rotation. The counter displays upto +370° range, ABS/INC mode switching, Zero Set. Angle reading : Built-in Digital counter (LED), Resolution : 1’ or 0.01° switchable. Life long smooth movement is assured by the incorporation of hard steel balls both in longitudinal and transverse slides.
High resolution objective lenses are bayonet mounted and specially designed for profile projection. Optical system is telecentric & having vertical illumination with adjustable condenser lens. The basic instrument is supplied with 10x a multi-element coated projection lens. Optional lenses 20X, 50X and 100X (Additional Attachment) are also available as per requirement. Magnification accuracy +0.1% or less in case of contour illumination and +0.15% or less in case of surface illumination is maintained.
Measurement units are available in standard micrometers, digital micrometers, digital readout & data processor as per customer's requirement. DR & DP are having built-in X / Y LED display.
Contour illumination light source is through 24V-150W Halogen bulb with telecentric system & sharp twin condenser. Half reflecting mirror for surface illumination, light source is through 24V-150 Watt Halogen Lamp with 2 step high/low switch is provided for brightness. Heat absorbing filter & cooling fan is also incorporated. Built in noiseless and vibration free blower for powerful cooling fan system. Heat absorbing filter also fitted for optimum cooling. Wide choice of available accessories enhance the scope of applications in various fields.
PROJECTION CAPACITY
| Contour Illumination | Surface Illumination | |||
| Magnification | 10x | 20x | 10x | 20mm |
|---|---|---|---|---|
| View Field Diameter | 30mm | 15mm | 30mm | 15mm |
| Working Distance | 65mm | 32mm | 20mm | 8mm |
| Model No. | RPP-3000 | RPP-3000DM | RPP-3000DR | RPP-3000DRS | RPP-3000DP | RPP-3000DPSW |
| X-Y Range | 25x25mm | 25x25mm | 200x100mm *0-25mm. **50×50mm with Gauge Block | |||
| Effective Table Area | 125x125mm | 125x125mm | 275x180mm | |||
| Measuring Unit | Micrometer Heads° | Digimatic Micrometer Heads° | Built-in Linear Scales | |||
| Resolution | 0.01mm | 0.001mm | 0.001mm/ 0.00005" | |||
| X-Y Counter | No | No | Yes | |||
| Digital Angle Counter | No | No | Yes | |||
| Optical Edge Detector | No | No | No | Optional | ||
| Rotary Measuring Stage | Yes, Stage Glass dia. 70mm | Yes, Stage Glass dia. 70mm | Optional | |||
| Table Type & Size | Al. 150x150mm | Al. 150x150mm | Al. 300x200mm | S.S. 300 x 200 mm. | Al. 300x200mm | |
| Maximum Workpiece height | 125mm | 125mm | 115mm | |||
| RPP-Software | No | No | No | No | Yes (Basic) | Yes (Quick Measuring) |
| Dimensions/Weight | 45x82x112cm /75 Kgs. | 45x82x112cm /75 Kgs. | 45x82x112cm /95 Kgs. | 45 x 82 x 112 cms. /100 Kgs. | 45x82x112cm /95 Kgs. |
45 x 82 x 112 cms. /100 Kgs. |
Coaxial Profile Projector RPP-3000
Profile projector with coaxial surface illumination are used, where the prime observation/ measurement requirement are of surface deep cavity etc.
Coaxial surface illumination – An illumination method whereby a work piece is illuminated by light transmitted coaxially through the objective lens for the observation/ measurement of the surface.
All other specifications are as per model RPP-3000
Coaxial surface illumination – An illumination method whereby a work piece is illuminated by light transmitted coaxially through the objective lens for the observation/ measurement of the surface.
All other specifications are as per model RPP-3000
Profile Projector RPP-350
Compact light weight Table Top with easy operations. 360mm dia. screen with 90° cross line & chart holders. Projection Light Source with 24V/150W Halogen Lamp. Double Oblique Light Source for Surface Illumination Double Oblique Light source for Surface Illumination throught 10 watt LED bulbs.. Motorised Focussing with 60mm focusing range. High Quality objective lenses. Optical distortion below 0.15%.
Standard magnification : 10x, Optional : 10x, 20x, 50x and 100x. High Quality European made objective lenses, Optical distortion below 0.1%. Optional Work Tables for Micrometer Heads & for linear scales with Digital Readout. Cooling by built-in noiseless and vibration free fan. Available in 110V & 220V through low voltage transformers.
MODEL NO. & SPECIFICATIONS
Standard magnification : 10x, Optional : 10x, 20x, 50x and 100x. High Quality European made objective lenses, Optical distortion below 0.1%. Optional Work Tables for Micrometer Heads & for linear scales with Digital Readout. Cooling by built-in noiseless and vibration free fan. Available in 110V & 220V through low voltage transformers.
PROJECTION CAPACITY
| Contour Illumination | Surface Illumination | |||||||
| Magnification | 10x | 20x | 50x | 100x | 10x | 20x | 50x | 100x |
| View Field Diameter | 36 | 18 | 7.2 | 3.6 | 36 | 18 | 7.2 | 3.6 |
| Working Distance | 115 | 95 | 46 | 35 | 115 | 95 | 46 | 35 |
MODEL NO. & SPECIFICATIONS
| Model No. | RPP-350 | RPP-350DM | RPP-350DR |
|---|---|---|---|
| X-Y Range | 50x50mm | 50x50mm |
200x100mm |
| Effective Table Area | 125x125mm | 125x125mm | 275x180mm |
| Measuring Unit | Micrometer Heads | Digital Micrometer Heads | Built in Linear Scales |
| Resolution | 0.01mm | 0.01mm | 0.001mm/ 0.00005" |
| X-Y Counter | No | No | Yes |
| Angle Counter | Optional | Optional | No |
| Optical Edge Detector | No | ||
| Rotary Measuring Stage |
Yes | Yes | Optional |
| Table Size | 150x150mm | 150x150mm | 310x250mm |
| Maximum Workpiece height | 116mm | 116mm | 110mm |
| RPP-Software | No | No | No |
| Dimensions/Weight | 50x84x104cm/150 Kgs. | ||
Profile Projector RPP-400
PROJECTION CAPACITY
| Contour Illumination | Surface Illumination | |||||||
| Magnification | 10x | 20x | 50x | 100x | 10x | 20x | 50x | 100x |
| View Field Diameter | 40mm | 20mm | 8mm | 4mm | 10mm | 20mm | 8mm | 4mm |
| Working Distance | 65mm | 32mm | 12mm | 5mm | 65mm | 32mm | 12mm | 5mm |
Profile Projector RPP-500V
Work Stage:- 350 x 200mm
Stage Travel X-Y axis:- 150 x 100mm
Focussing Range:- 125mm
Magnification Standard:- 10x
Magnification Optional:- 20x, 25x, 50x, 100x
Protactor Screen:- 360° Rotation with 2 minutes vernier resolution
Magnification Accuracy:- ± 0.05% on contour and ± 0.1% on surface
Lens Mounting:- 3 turret type for safety and easy use.
Resolution:- 0.001mm
Measuring System:- With Mechanical micrometer 0-25mm/DRO/Data Processor (selectable),
(optional PC based software)
Illumination:- 24V, 150W Halogen, Forced Air cooled, Light intensity controller
Filter colour:- Green (Yellow - option)
Power Supply:- AC Single Phase 230V, 50Hz
Standard Accessories:- Projection lamps 2 nos, Operating manual, Calibrations Certificate etc.
Profile Projector RPH-400
It is ideal for large heavy parts and Shafts to be held on V blocks or between centers. Typical applications include casting, transmission shafts, thread form measurement and machined componets.
Suitable for thread pitch measuremente-blurred or distorted images will not be produced when workpiece is angled. 400mm diameter protractor screen with cross-hairs and staggered line for easy alignment.
Screen Diameter:- 400mm
Work Stage:- 500 x 170mm
Stage Travel X-Y axis:- 200 x 150mm
Focussing Range:- 150mm
Protactor Screen:- 360° Rotation with 2 minutes vernier resolution
Magnification Standard:- 10x
Magnification Optional:- 20x, 25x, 50x, 100x
Magnification Accuracy:- ± 0.05% on contour and ± 0.1% on surface
Lens Mounting:- 3 turret type for safety and easy use.
Table Top Area:- With T-slots (Helixable for 15" either sides)
Resolution:- 0.001mm
Measuring System:- By X-Y digital read out (optional PC based Software)
Illumination:- 24V, 150W Halogen, Forced Air cooled, Light intensity controller for variable backgrounds
Filter colour: - Green (Yellow - option)
Power Supply :- AC Single Phase 230V, 50Hz
Standard Accessories :- V-Block set of 2 nos. with centers, Projection lamps 2 nos, Operating manual, Calibrations Certificate etc.
Suitable for thread pitch measuremente-blurred or distorted images will not be produced when workpiece is angled. 400mm diameter protractor screen with cross-hairs and staggered line for easy alignment.
Screen Diameter:- 400mm
Work Stage:- 500 x 170mm
Stage Travel X-Y axis:- 200 x 150mm
Focussing Range:- 150mm
Protactor Screen:- 360° Rotation with 2 minutes vernier resolution
Magnification Standard:- 10x
Magnification Optional:- 20x, 25x, 50x, 100x
Magnification Accuracy:- ± 0.05% on contour and ± 0.1% on surface
Lens Mounting:- 3 turret type for safety and easy use.
Table Top Area:- With T-slots (Helixable for 15" either sides)
Resolution:- 0.001mm
Measuring System:- By X-Y digital read out (optional PC based Software)
Illumination:- 24V, 150W Halogen, Forced Air cooled, Light intensity controller for variable backgrounds
Filter colour: - Green (Yellow - option)
Power Supply :- AC Single Phase 230V, 50Hz
Standard Accessories :- V-Block set of 2 nos. with centers, Projection lamps 2 nos, Operating manual, Calibrations Certificate etc.
Profile Projector RPH-600
It is ideal for large heavy parts and Shafts to be held on V blocks or between centers. Typical applications include casting, transmission shafts, thread form measurement and machined componets.
Suitable for thread pitch measuremente-blurred or distorted images will not be produced when workpiece is angled. 600mm diameter protractor screen with cross-hairs and staggered line for easy alignment.
Screen Diameter :- 600mm.
Work Stage :- 600mm x 200mm.
Stage Travel X-Y Axis :- 200mm x 150mm.
Focussing Range :- 150mm.
Protecor Screen :- 360° Rotation with 2 minutes vernier resolution
Standard Magnification :- 10X
Optional Magnification :- 20X, 25X, 50X & 100X
Magnification Accuracy :- ± 0.05% on contour and ± 0.1% on surface
Lens Mounting :- 3 Turret type for safety and easy use.
Table Top Area :- With T-slot (Helixable for 15o either side).
Resolution :- 0.001mm.
Measuring System :- X-Y Digital Read Out (Optional PC based Software)
Illumination :- 24V, 150W Halogen, Forced Air Cooled, Light Intensity controller for variable backgrounds.
Filter Color :- Green (Yellow - Optional)
Power Supply :- AC Single Phase 230V, 50Hz
Standard Accessories :- V-Block set of 2 nos. with centers, Projection lamps 2 nos, Operating manual, Calibrations Certificate etc.
Suitable for thread pitch measuremente-blurred or distorted images will not be produced when workpiece is angled. 600mm diameter protractor screen with cross-hairs and staggered line for easy alignment.
Screen Diameter :- 600mm.
Work Stage :- 600mm x 200mm.
Stage Travel X-Y Axis :- 200mm x 150mm.
Focussing Range :- 150mm.
Protecor Screen :- 360° Rotation with 2 minutes vernier resolution
Standard Magnification :- 10X
Optional Magnification :- 20X, 25X, 50X & 100X
Magnification Accuracy :- ± 0.05% on contour and ± 0.1% on surface
Lens Mounting :- 3 Turret type for safety and easy use.
Table Top Area :- With T-slot (Helixable for 15o either side).
Resolution :- 0.001mm.
Measuring System :- X-Y Digital Read Out (Optional PC based Software)
Illumination :- 24V, 150W Halogen, Forced Air Cooled, Light Intensity controller for variable backgrounds.
Filter Color :- Green (Yellow - Optional)
Power Supply :- AC Single Phase 230V, 50Hz
Standard Accessories :- V-Block set of 2 nos. with centers, Projection lamps 2 nos, Operating manual, Calibrations Certificate etc.
INSTRUMENTATION SINCE 1975 © 2025 Radical Scientific Equipments Pvt Ltd, All rights reserved
