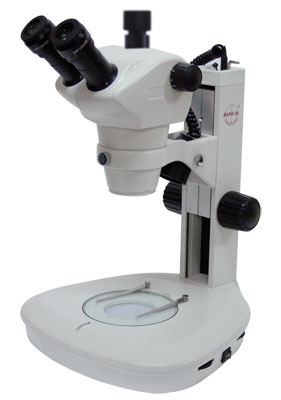

Advanced Stereo Zoom Microscope

At Radical, we are committed to provide you with world class optical system at reasonable prices i.e. a better cost to performance ratio. To fulfil this goal our dedicated R & D Team have introduced a new series of Stereoscopic Microscope RSMr-6, RSMr-8, RSMr-10 and RSMr-12. The unmatched optical performance alongwith ergonomic design provides user a comfortable operation and minimum fatigue during long hours of observation. In addition flexible configuration allows easy ungrades through the addition of various accessories.
* Intermediate Modules like Co-axial illuminator, teaching head, drawing tube etc.
* High-eyepoint Eyepieces with built in diopter adjuster brings the image and reticle into focus, making it easier to view images as well as reducing eyestrain
* Low Position Focus Knob, for quick and effortless focusing thus eliminating the need to twist your shoulders while working on samples.

Technical Specification
Descriptions	RSMr-12	RSMr-10	RSMr-8	RSMr-6
Optical System	Parallel Optics Zoom System
Total Magnification*	4x-576x	4x-480x	4x-378x	4x-200x
Zoom Range	0.8X- 9.6X	0.8X-8X	0.8X-6.4X	0.57X-3.6X
Zoom Ratio	1:12	1:10	1:8	1/6.3
Objective Tubes	Plan APO 0.5x WD 195mm Plan APO 1.0x WD 80mm Plan       1.25x WD 60mm Plan      2.0x WD 35mm Plan       0.3x WD 275mm
Eyepiece Tubes	Standard Binocular , Low Eye-Level Binocular.
Eyepiece Inclination	20° (Standard Binocular and Low Eye-Level Binocular) 0°-30°(Tilting Binocular)
Inter-Pupillary Distance	48-75mm.(1.9" - 3.0")
Eye-Pieces with Diopter Adjustment	WF10X (F.N.22) WF10X (F.N.24) WF15X (F.N.20) WF20X (F.N.12.5) WF30X (F.N.7.0)
Illumination Systems	Epi-illumination, Incident & Trensmitted LED, Intensity/ Brightness control, Fibre optic light source with single or double flexible light pipes. Co-axial illuminator 12v-100w Halogen Circular Fluorescent illuminator.
Stands	Plan Focusing Stand Co-axial coarse and fine focusing Stand Gemological Stand Universal Stand
Camera Attachment	Single Camera tube Double Camera tube
Optional Accessories	Ergo Head, Dark Field Attachment, Articulated Boom Stand, CCD, Drawing Attachment, Teaching Head, Heating Stage & Motorized etc.

Specification :- Same as above but with Fluorescent Attachment
